Who Is Phasemation?
Phasemation started with the P-1 cartridge in 2002, and this year marks the 20th anniversary of the brand's founding. To commemorate this anniversary, we have created a new flagship cartridge, the PP-5000, which is a new milestone in the field of cartridges and said to be the origin of the brand.
Based on the knowledge gained through continuous research on cartridges, the PP-5000 has a diamond cantilever to achieve even greater spatial expression, sound image localization, and bass sound playing which is suitable for a flagship cartridge.
I have found these cartridges to be extremely balanced in their sound (I have the PP5000 & PPMono) as well as being the best tracking cartridges I have ever had! - Bill Demars

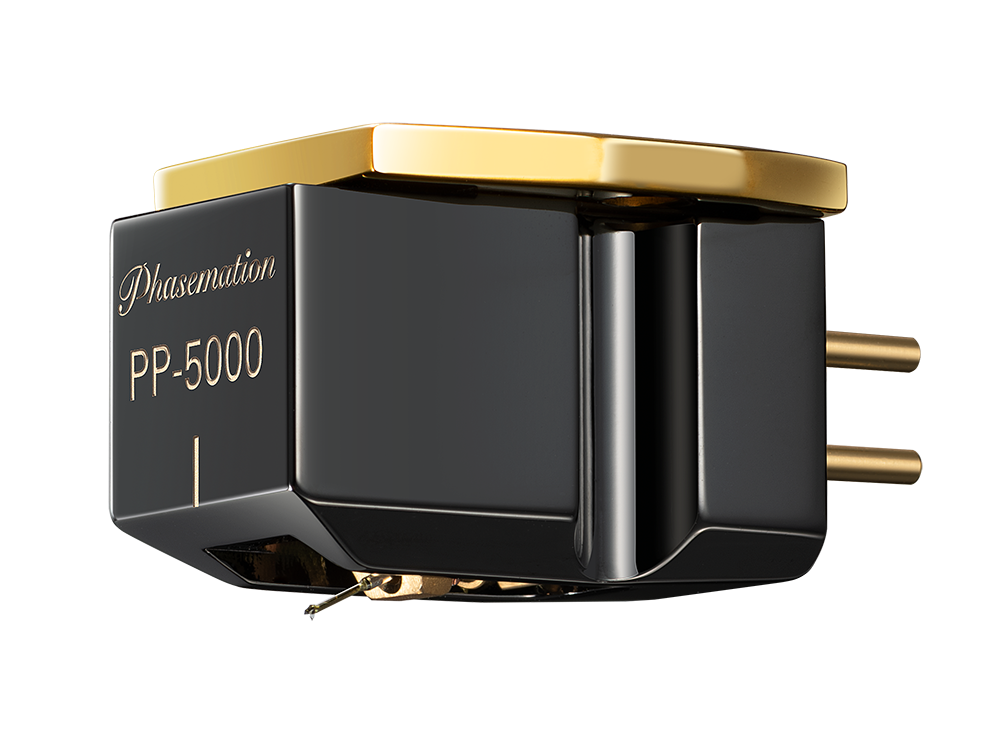

MC Cartridge PP5000
Product Specifications
- Power Generation Type Moving Coil Type
- Impedance 4Ω
- Appropriate needle pressure 1.7 to 2.0g
- Output voltage 0.3mV or more (1kHz 50mm/s horizontal direction)
- Compliance 8.5μ /mN [8.5x10-6cm/dyne]
- Playback frequency range 10Hz to 30kHz
- Separation 30dB or better (1kHz)
- Channel balance within 1dB (1kHz)
- Cantilever Synthetic diamond (0.2mm square)
- Stylus tip Natural diamond (line contact / curvature 0.03 x 0.003 mm)
- Magnet Samarium cobalt
- Magnetic circuit material Permendur
- Base Material Machined from stainless steel / TiN treatment
- Body Material Duralumin machined / DLC treatment
- Body weight 14.3g
- *DLC (Diamond Like Carbon) is a generic term for carbon thin films with high hardness and electrical insulation properties similar to diamond, created with a vapor phase synthesis method using ions.

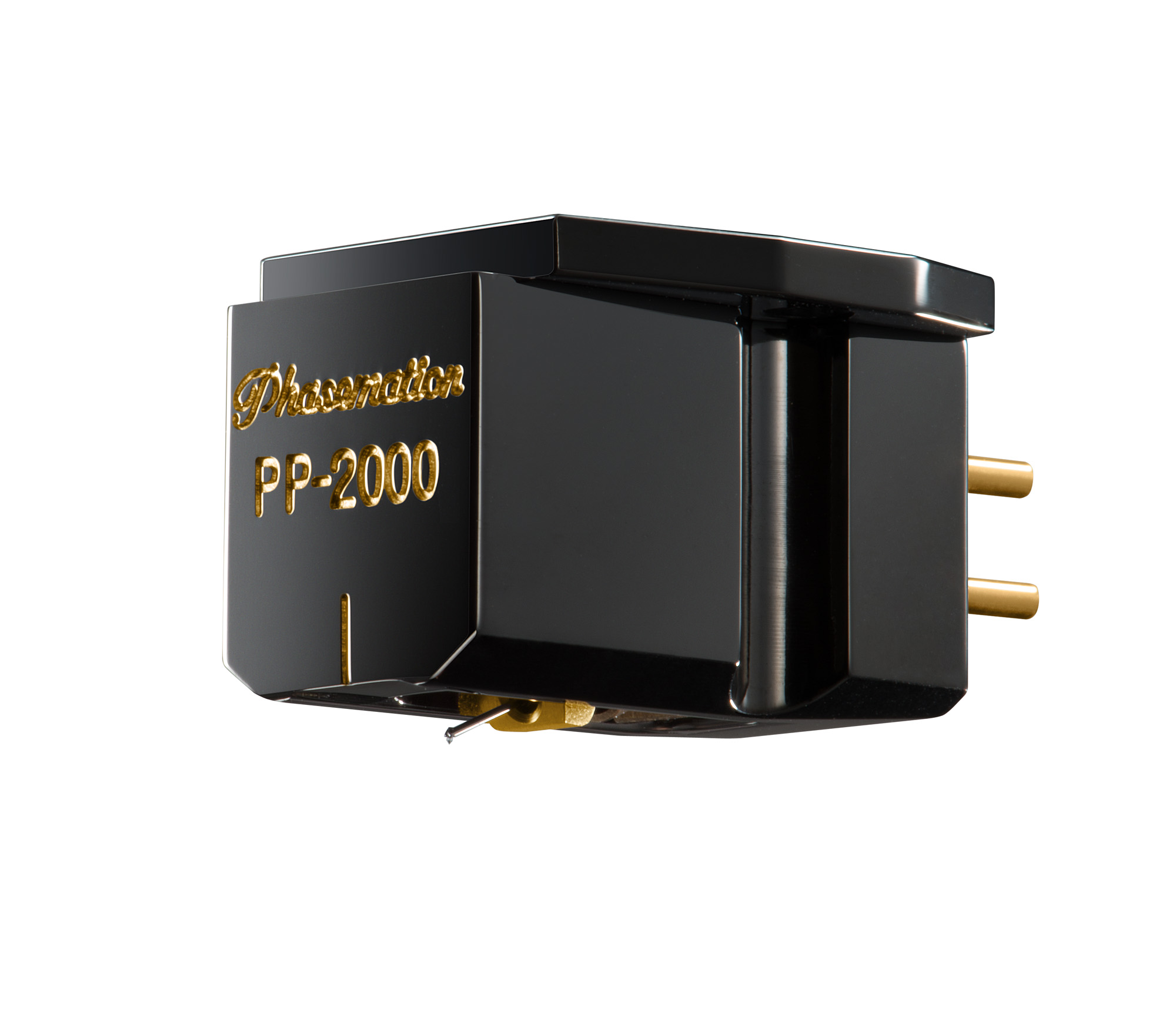

MC Phono Pickup Cartridge PP2000
Product Specification
- Power Generation Method Moving Coil Type
- Impedance 4 Ohm
- Applicable Stylus Force 1.7 to 2.0g
- Output Voltage 0.3mV(horizontal direction of 1kHz 50mm/s)
- Compliance 8.0X10(e-6)cm/dyne
- Playing Frequency Range 10Hz to 30kHz
- Separation 30dB or more (1kHz)
- Channel Balance Within 1dB (1kHz）
- Range of Recommended Temperature 20℃ to 26℃
- Tare 14.3g
- Stylus Chip Diamond(line contact / curvature 0.03×0.003mm)
- Cantilever Pure Boron φ0.26
- Magnet Samarium Cobalt Magnet
- Magnetic Circuit Composition Material Permendur
- Base Stainless(Diamond Like Carbon processing)
- Body Duralumin(Diamond Like Carbon processing)

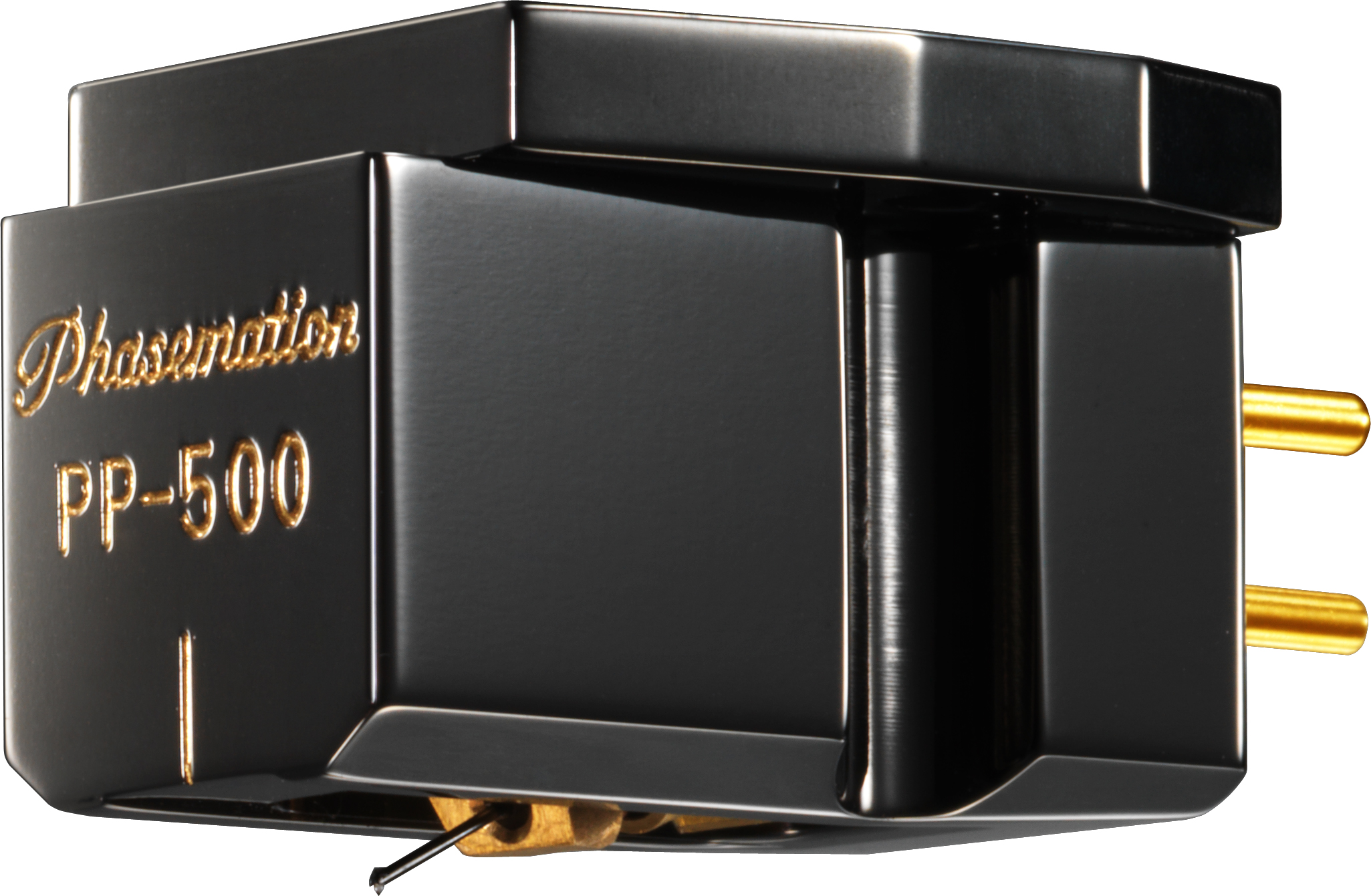

MC Phono Pickup Cartridge PP500
Product Specification
- Power Generation Method Moving Coil Type
- Impedance 4 Ohm
- Applicable Stylus Force 1.7 to 2.0g
- Output Voltage 0.3mV (horizontal direction of 1kHz 50mm/s)
- Compliance 8.0 µm/mN (8.0x10(-6) cm/dyne)
- Playing Frequency Range 10Hz to 30kHz
- Separation 30dB or more (1kHz)
- Channel Balance Within 1dB (1kHz）
- Tare 11.3g
- Stylus Chip Diamond(line contact / curvature 0.03×0.003mm)
- Cantilever Pure Boron φ0.26
- Magnet Samarium Cobalt Magnet
- Magnetic Circuit Composition Material Permendur
- Base Machined duralumin (Diamond Like Carbon processing)
- Body Machined Duralumin (Diamond Like Carbon processing)

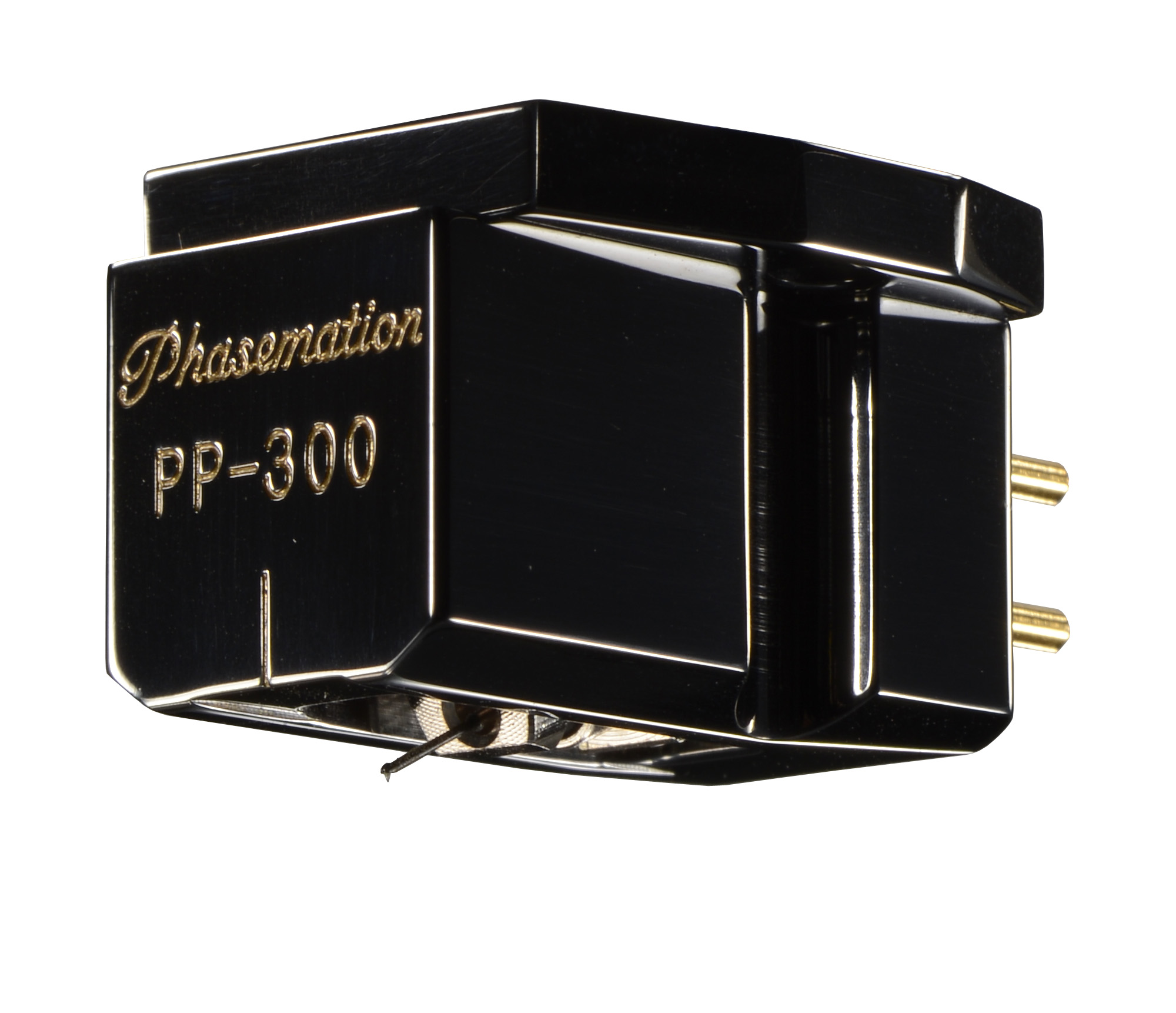

MC Phono Pickup Cartridge PP300
- Product Specification
- Magneto method Moving coil method
- Impedance 4 ohm
- Appropriate stylus pressure 2.0 g
- Output voltage 0.28 mV (1 kHz, 50 mm/s, Horizontal direction)
- Compliance 8.0x10(e-6) cm/dyne
- Playable frequency range 10Hz to 30kHz
- Separation 30 dB or more (1 kHz)
- Channel balance 1 dB or less (1 kHz)
- Mass of body 11.1 g
- Stylus chip Diamond(Line contact; Curvature: 0.03 x 0.003 mm)

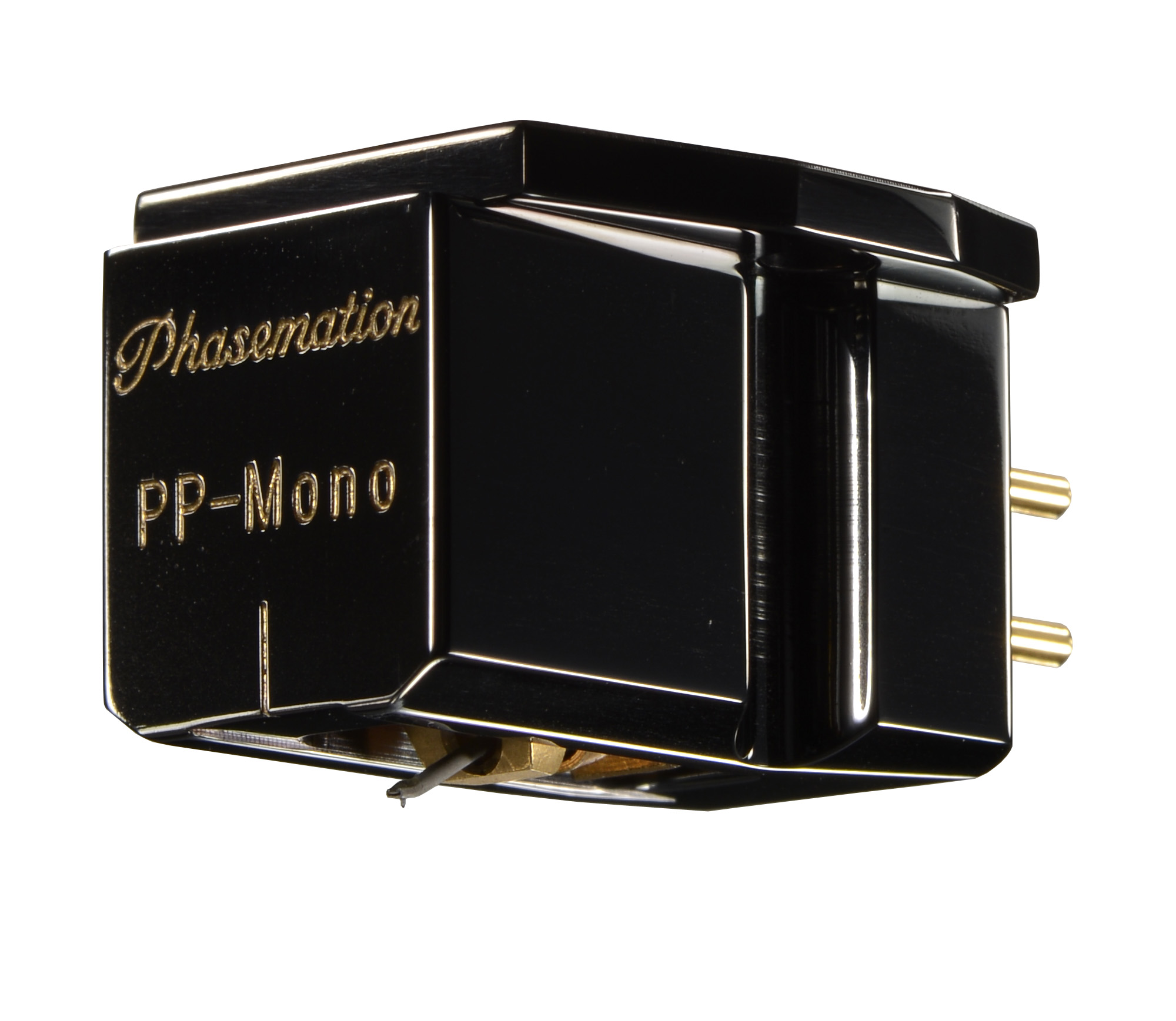

MC Monaural Phono Pickup Cartridge PPMono
Product Specification
- Magneto method Moving coil method
- Impedance 4 ohms
- Appropriate stylus pressure 2.0 g
- Output voltage 0.38 mV(1 kHz, 50 mm/s, Horizontal direction)
- Compliance 8.0x10(e-6) cm/dyne
- Playable frequency range 10Hz to 30kHz
- Channel balance 1 dB or less (1 kHz)
- Mass of body 14.7 g
- Stylus chip: Diamond (Round pin; Curvature: 0.65 mil)
